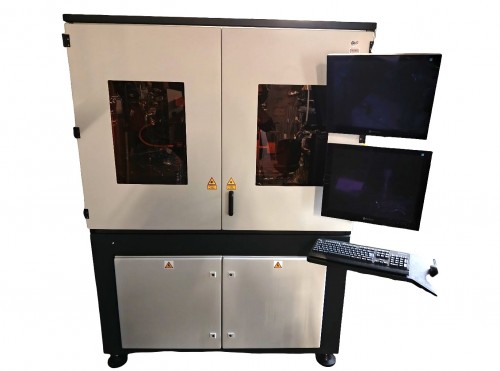

Lasea 3S
Inquire- Manufactured by:
- Lasea
- Model number:
- 3S
- Year manufactured:
- 2015
- Condition:
-
Very good condition
- Asking price:
- $65,000
- Price when new:
- $600,000
- Included extras:
- Manual
Warranty
Demonstratable
Training
Installation - Parts and accessories:
- SPI 400W 1070nm Fiber Source COHERENT FAP 100W 820nm COMPACT HIGH-ENERGY PICOSECOND Sirius 5W / Single shot to 1 MHz 1064 nm > 60 µJ 2W / Single shot to 1 MHz 532 nm > 32 µJ
- Equipment location:
- France
- Additional information:
- MICROMACHINING LASER SYSTEM Overview / Micromachining laser for welding, cutting, drilling, engraving, and texturing / Ultrashort pulse laser / LASEA laser for R&D / Extremely robust system ideally suited for precision tasks Applications / Complete cutting / Drilling / Welding / Assembly / Texturing / Surface treatment Compatible Materials / Sapphire / Quartz / Ceramics / Silicone / Alloys and metals / Silicon / And more Work Area & Positioning / XZ table with 500x200mm travel / 200x200mm work area / Vertical rotary axis / Z-axis supports optical systems / Internal axis resolution: 1µm LASER SYSTEMS 400W Laser / Equipped with welding and cutting head / In-line camera for precise positioning / Through-the-lens manual positioning for welding and cutting / Multi-gas injection capability 100W FAP Laser / Directly connected to fiber optic cable / Fixed lens system Picosecond Laser / Directed via mirror system and scanner head / Separate lens system for each wavelength: 532nm and 1064nm INSPECTION & PRS / Microscopic inspection zoom system with software / Offset, zoom, and focus memory / Edge, line, and circle detection FUME EXTRACTION / VOC 99.99% Fume Extraction System EQUIPMENT SPECIFICATIONS / SPI 400W 1070nm Fiber Source / COHERENT FAP 100W 820nm / COMPACT HIGH-ENERGY PICOSECOND 5W (Single shot to 1 MHz, 1064 nm > 60 µJ) / 2W (Single shot to 1 MHz, 532 nm > 32 µJ) / XYT + Z Aerotech PRO165 Table + A3200 Controller / SMC Chiller / Fume Extractor / Power Process Software SOFTWARE COMPATIBILITY / DWG, DXF, GDS2, STL, STEP / AutoCAD for Direct Editing / Windows 7 / Laser Calibration Tool VIEWING & TRANSPORT / Machine can be viewed on-site or via video / Transportation is the responsibility of the customer
- Laser Model Number:
- 3S
- Laser Actual Power (watts):
- ~400W
- Laser Cooling:
- SMC Chiller
- System XYZ Travel (inches or ):
- 200x200mm
- System Controller & Software:
- A3200 Controller
- Item Number:
- 8229
