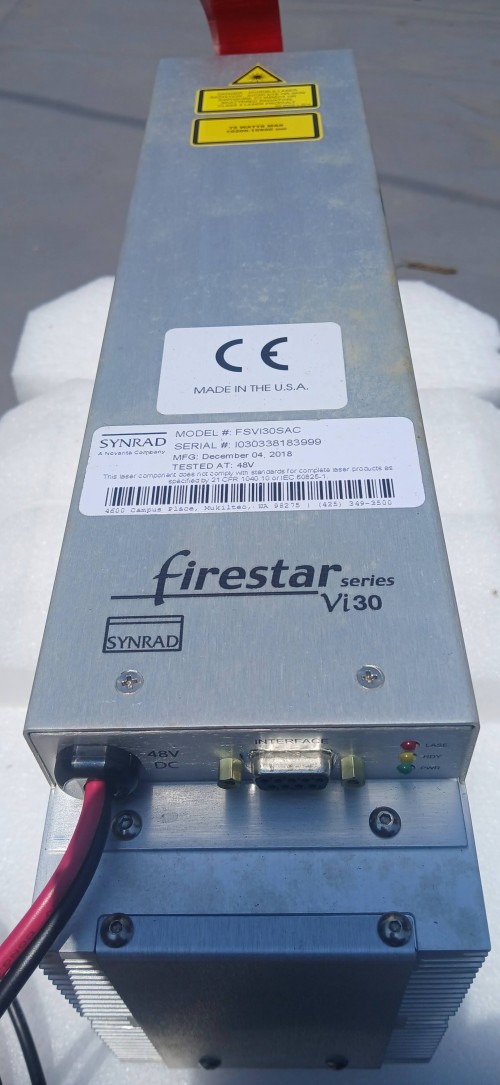

Synrad Firestar VI30 Laser Module - User Manual
1. Introduction
The Synrad Firestar VI30 CO2 Laser Module is a 30W RF-excited, air-cooled, sealed laser designed
for precision engraving, cutting, and marking applications. It is intended for integration into CNC,
galvo, or custom OEM systems.
2. Key Specifications
- Model Number: Firestar VI30 (FSVI30)
- Rated Output Power: 30W
- Actual Output Power: ~30W (nominal, varies slightly with age/condition)
- Cooling: Air-cooled (internal fans)
- Wavelength: 10.6 um
- Beam Quality (M2): < 1.2
- Input Voltage: 48V DC (via laser PSU)
- System Input 1: 5-24V DC (enable signal)
- Dimensions: Approx. 8.5" x 5.5" x 3.5"
- Weight: Approx. 14 lbs (6.5 kg)
3. Installation
- Securely mount the module in your engraving or cutting system.
- Connect a regulated 48V DC laser PSU to the power terminals.
- Ensure the enable signal (System Input 1) is properly wired to your controller or interlock circuit.
4. Electrical Connections
- Power: 48V DC @ 10-15A (from compatible PSU)
- System Input 1: 5V-24V logic signal to enable laser output
5. Cooling Requirements
- Ensure fans are unobstructed and airflow is adequate.
- Operate in environments between 15 degreesC to 35 degreesC.
- Avoid high humidity.
6. Operating Instructions
- Apply 48V DC power to the module.
- Send 5-24V DC to System Input 1 to enable firing.
- Use compatible software to control engraving/cutting (e.g., LightBurn, RDWorks, LaserCAD).
7. Maintenance & Troubleshooting
- Keep optics clean and dust-free.
- If laser fails to fire, confirm PSU output and System Input 1 signal.
- Inspect interlock and control connections.
8. Safety
- Always wear appropriate CO2 laser safety goggles.
- Never view beam directly or through reflective surfaces.
- Ensure ventilation when cutting/engraving materials that emit fumes.
9. Warranty & Support
- Typically comes with 2-year limited warranty (check original terms).
- For technical support, contact Synrad or your system integrator.
10. Contact Information
Synrad, Inc.
www.synrad.com
End of Manual
