Raycus RFL-C330-LM
Inquire- Manufactured by:
- Raycus
- Model number:
- RFL-C330-LM
- Year manufactured:
- 2021
- Condition:
-
New or Like New
- Asking price:
- $3,500
- Quantity available:
- 15
- Included extras:
- Manual
Warranty
Demonstratable
Training
Installation - Parts and accessories:
- INCLUDES: Beam delivery cable (yellow): 10 meters of 125um fiber protected by yellow plastic covered squarelock steel cable. The beam delivery fiber itself is 125um outer diameter delivery a beam at 1060 nm // built in beam aiming light at 600-700nm
- Equipment location:
- Eastern Masscusetts
- Additional information:

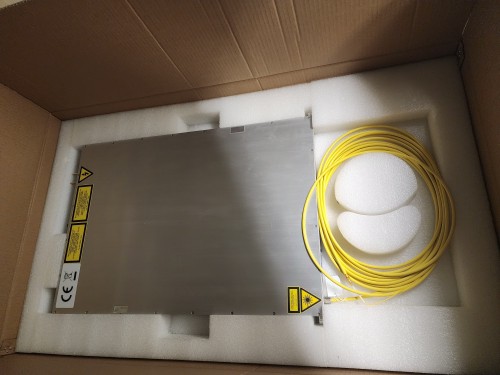

- All these lasers are 0min run time and still in unopened packaging from the manufacturer (boxed and sealed in bags with desiccants). They were intended to be replacement lasers for a larger system but were never opened or used. They should all function and still have the "Inspection Record Sheets" from the manufacturer in the box which shows output power from the last time the systems were energised. I could likely demonstrate functionality in a few months as I am still in the process of setting up my cleanroom facility. // The "working" wavelength is 1070-1080um but each laser also has a low power red diode coupled into the output fiber. This is generally used as an indicator or "aiming beam" as it is fairly low power, only a few mW.
- Laser Manufacturer:
- Raycus
- Laser Wavelength:
- 1080nm
- Laser Output Characteristics:
- CW & Pulsed
- Laser Rated Power (watts):
- 350 watts
- Laser Cooling:
- Water
- System Input Power I:
- 48 volts DC Max 30A
- Laser Actual Power (watts):
- ~ 350 watts
- Item Number:
- 7955
