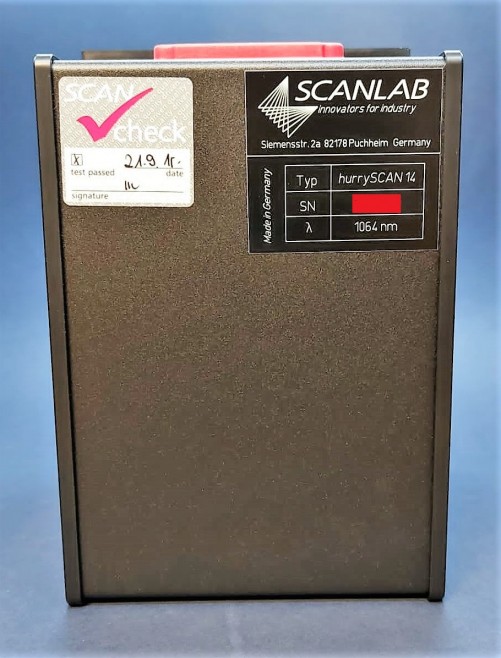

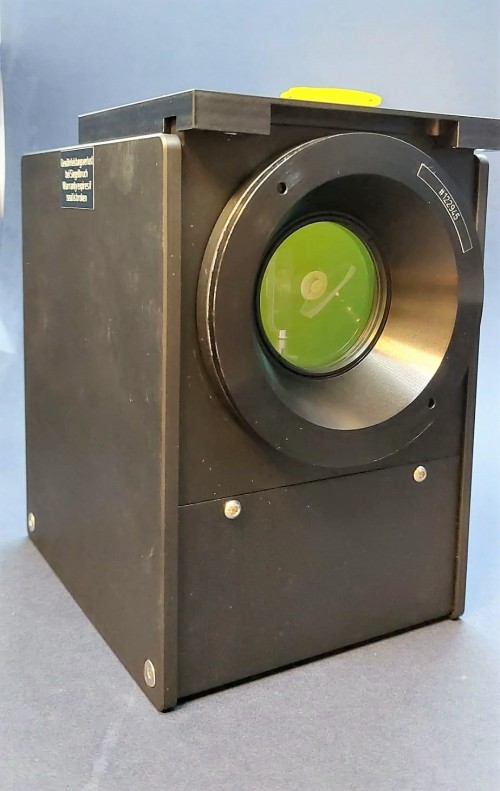

ScanLab hurrySCAN 14
Inquire- Manufactured by:
- ScanLab
- Model number:
- hurrySCAN 14
- Year manufactured:
- 2013
- Condition:
-
Very good condition
- Asking price:
- $1,500
- Price when new:
- $4,000
- Included extras:
- Manual
Warranty
Demonstratable
Training
Installation - Equipment location:
- UK
- Additional information:
- Scanlab Hurryscan 14 laser Scanhead 1064 wavelength A scanhead based system used for rapid marking applications. // Field size dependant on F-theta lens attached to the base. Input aperture 14mm. // Compact scan head from SCANLAB provides optimal solutions for nearly all challenges found in industrial laser materials processing. Aperture 14 mm // Optical Configuration YAG- & fiber lasers // Max. laser power (standard systems, 100% duty cycle) 200 W @ 1064 nm // Typical scan angle ±0.35 rad (mech.) // Image field size (1064 nm, f = 160 mm) 120 mm x 120 mm (for f = 163 mm) // Typical spot size (1064 nm, f = 160 mm, M2 = 1.0) 32 µm // Tracking error 0.18 ms // Marking speed (f = 160 mm) 2.0 m/s // Positioning speed (f = 160 mm) 7.0 m/s // Writing speed (with F-Theta lens, f = 160 mm) // High writing quality 400 cps // Good writing quality 640 cps //
- Item Number:
- 7747
