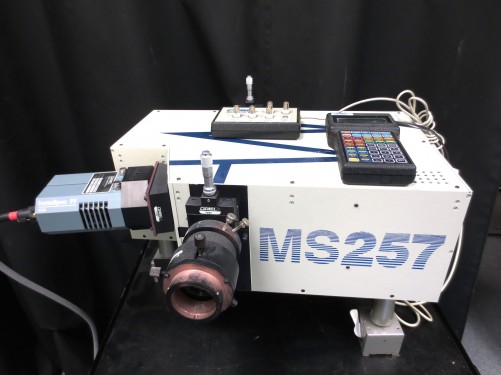

Oriel MS257
Inquire- Manufactured by:
- Oriel
- Model number:
- MS257
- Year manufactured:
- 2002
- Condition:
-
Very good condition
- Asking price:
- $1,500
- Included extras:
- Manual
Warranty
Demonstratable
Training
Installation - Parts and accessories:
- collection optics // Instaspec IV // Oriel CCD detector (without interface)
- Equipment location:
- Boston, Massachusetts area
- Additional information:
- Input voltage is 120 VAC. It has 4 internal, selectable gratings with the following specifications. Grating-1, 1200 g/mm, 750nm blaze Grating-2, 600 g/mm, 400nm blaze Grating-3, 150 g/mm, 300nm blaze Grating-4, 150 g/mm, 800nm blaze It appears that the gratings can be set to any wavelength value. However, the useable wavelength range is determined by the grating efficiency, being maximum at the blaze wavelength and decreasing away from the blaze wavelength. Thus, in addition to the VIS wavelength region, gratings 1 and 4 should get into the IR region and gratings 2 and 3 should go into the UV region.
- Type of Device II:
- Spectrometer
- List Device Attributes :
- 1/4 m spectrometer, tunable, adjustble slits
- Item Number:
- 6481
