Miyachi Unitek LW50A
Inquire- Manufactured by:
- Miyachi Unitek
- Model number:
- LW50A
- Year manufactured:
- 2011
- Condition:
-
New or Like New
- Asking price:
- $120,000
- Price when new:
- $200,000
- Included extras:
- Manual
Warranty
Demonstratable
Training
Installation - Parts and accessories:
- Major Accessories: Laser welding Enclosure, 40”W x 40”H x 26”D // Chiller, OTC-1.0A, 10560 BTU, 208-230 Vac, 3-phase, 60 Hz //
- Equipment location:
- Northern California
- Additional information:

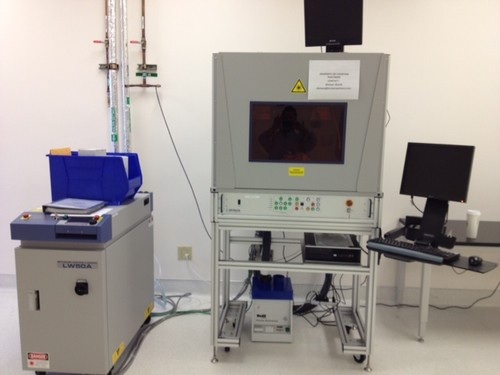

- LW50A, A Series, water cooled pulsed Nd:YAG laser power supply featuring 5 kW peak power, 50 joules pulse energy, 50 Watts average output power, micro-processor control and diode aiming laser. LW50A features include power feedback control, power ramping and pulse shaping. The LW50A provides up to four (4) Energy or six (6) Time Share fiber outputs and up to 200 Hz pulse rate. For your application the LW50A configuration includes the following items: -One (1) energy output -Install 2X beam expander; required for fibers < 400 micron -One (1) Stepped Index fiber, 200 micron core diameter x five meters long -One (1) FX120/120 CCTV Focusing Assembly, 50 mm diameter optics with 120 mm collimating and 120 mm output focal lenses -2X image magnifier to double magnification ratio for CCTV viewing -One (1) B&W CCTV system; including CCD camera, 15” LCD monitor, cross hair generator and interconnecting cables Delta BDVS four (4) axis laser welding system; configured for your application as follows: -Laser welding Enclosure, 40”W x 40”H x 26”D, CDRH Class I eye safe; pneumatic vertical sliding front access door with regulators and controls; Nd:YAG safety viewport, 1” thick aluminum base plate, safety interlocks, and fume extraction port, 120VAC 50/60Hz, 10 A -Heavy duty overhead gantry mounting; welded steel supports -6” Z stage mounted to gantry -Mount focusing assembly and camera (ordered with laser) to Z stage with swivel bracket -8” x 8” XY table with tool plate; low profile motion stages with cross-roller bearings. MUC proprietary design for optimal laser welding performance -5” rotary stage with 3-jaw chuck; mounted on XY table -Removable manual tilt plate for rotary stage; 0° to 90° -Servo drives and motors -Four (4) axis Delta Tau Motion Controller with Windows®-based Software; program using “G” & “M” codes and extended DeltaTau programming language -Standard Miyachi Unitek HMI Software; includes integrated motion and laser communications -PC with 17” LCD flat panel display, keyboard, and mouse; includes video capture board for viewing of CCTV camera image -Ergonomic mounting arm for PC display and keyboard and CCTV monitor -Control panel with buttons and indicators including; E-stop, motion jog buttons and cover gas -Cover gas module - includes flowmeter, solenoid, and gas hose with dual nozzles and bracket to focusing assembly -Heavy duty machine base with casters and leveling feet -Install internal fume exhaust hose and nozzle -Integration with LW50A laser -Fume Exhaust System, ARM-EVAC 200 with pre-filter and general purpose combination filter, 120VAC, 60Hz, 3A - 170 cfm with single inlet; includes inside ducting and one (1) hose connection to workstation; -LW50A Chiller, OTC-1.0A, 10560 BTU, 208-230 Vac, 3-phase, 60 Hz
- Pulse Shaping:
- yes
- Max Average Power:
- 50 watts
- Max Joules per Pulse (joules):
- 50 joules
- Max Peak Power:
- 5 kW
- Cooling:
- Water
- Beam Delivery:
- Hard optics. See details above
- System XYZ Travel (inches or ):
- X = 8", Y = 8', Z = 6" & Rotary
- System Controller & Software:
- See above
- Item Number:
- 6059
