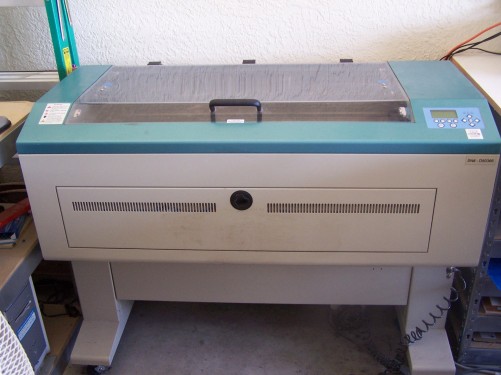

Pinnacle M-Series
Inquire- Manufactured by:
- Pinnacle
- Model number:
- M-Series
- Year manufactured:
- 2004
- Condition:
-
Very good condition
- Asking price:
- $6,500
- Price when new:
- $19,000
- Included extras:
- Manual
Warranty
Demonstratable
Training
Installation - Parts and accessories:
- Air Compressor, Exhaust Fan, Honey Comb Cutting Table, New In Box Rotary Attachment
- Equipment location:
- Florida
- Additional information:
- NOTE: NEW TUBE IN FEBRUARY 2011 // M-Series M-30W, Laser Source Sealed CO2 Laser Work Area 25" x 18" (635mm x 457mm) Max. Working Piece (W x D x Thick) 31.5" x 22.4" x 6.5" (800mm x 570mm x 165mm) Overall Dimensions (W x D x H) 44.3" x 28.3" x 39.6" Table Size 31" x 20.9" (790mm x 530mm) Drive DC Servo Motor Cutting Speed Control Adjustable from 0.01 to 42 inch/sec with up to 16 colors linked speed setting per job Engraving Speed Control Adjustable from 3.0% to 100% with up to 16 colors linked speed setting per job Power Control Adjustable from 0% to 100% with up to 16 colors linked power setting per job Z Axis Moving Automatic Resolution (dpi) 1000, 600, 500, 300, 250, 200 Computer Interface Printer port (LPT) and/or serial port (Comm) for PC Memory Buffer 16MB standard upgradeable to 64MB with SIMM modules. Multiple file mode saves up to 100 files! Display Panel 4-line LCD display showing current file name, total working time, laser power, engrave speed, file loaded, setup and diagnostics. Power 100 - 240 VAC, 10-20 Amp, AC Auto Switch (12W: 10 Amp; 25-100W: 15 Amp) Cooling Air-cooled;
- Engraver Type:
- Raster and Vector
- System Input Power I:
- 100-240 VAC, 10-20 Amp, AC Auto Switch
- Laser Manufacturer:
- Coherent (New tube in February 2011)
- Laser Rated Power (watts):
- 30
- Laser Actual Power (watts):
- 35
- Laser Cooling:
- Air
- Engraving field size:
- 20" x 31"
- Item Number:
- 5914
