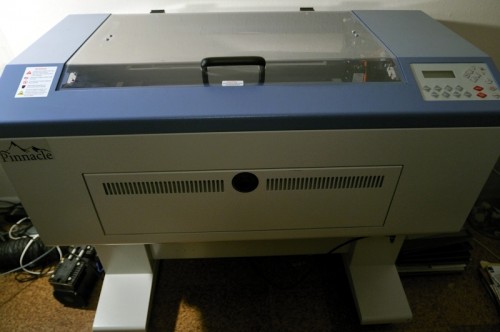

Pinnacle M-30
Inquire- Manufactured by:
- Pinnacle
- Model number:
- M-30
- Year manufactured:
- 2008
- Condition:
-
New or Like New
- Asking price:
- $7,500
- Price when new:
- $16,500
- Hours of Use or Pulse Count:
- 50 hours max
- Included extras:
- Manual
Warranty
Demonstratable
Training
Installation - Parts and accessories:
- Includes: Vector Cutting Table // Air Compressor // Blower // Rotary Attachment // Front opening for increased length // Laser Tiles
- Equipment location:
- Virginia
- Additional information:
- The Pinnacle M-Series has a 30Watt sealed CO2 Laser. This unit has a 25" x 18" (635mm x 457mm) work area, and will hold working pieces up to 31.5" wide (800mm), 22.4" long (570mm), and 6.5" thick (165mm), but there is a pass-through door for engraving items longer than 18 inches. Overall dimensions of the engraver are 44.3" wide, 28.3" deep, and 39.6" high, with an engraver table size of 31" x 20.9" (790mm x 530mm). The laser engrave drive is a DC servo motor for fine control, and has cutting speed control that is adjustable from 0.01 to 42 inch/second with up to 16 colors linked speed setting per job. Engraving speed control is adjustable from 3.0% to 100% with up to 16 colors linked speed setting per job, and the laser power is control adjustable from 0% to 100% with up to 16 colors linked power setting per job. Z axis moving is automatic, and the engraver can use resolutions in 200, 250, 300, 500, 600, and 1000 dpi ranges. The computer interface for the M-30 is through the printer port (LPT) and/or serial port (Comm). The Memory Buffer for the engraver is 16MB standard, but has been upgraded to 64MB with SIMM modules. This allows multiple file mode to be saves up to 100 files. The M-30 has a 4-line LCD display panel showing current file name, total working time, laser power, engrave speed, file loaded, setup and diagnostics. The engraver runs off of 100 - 240 VAC, 10-20 Amp, AC, and is air-cooled. Types of projects you can do with the Pinnacle are Awards, Badges and Tags, Gift Engraving, Stencil Making, Model Making, Glass Etching, Notary Seals, Metal Marking, Sign Making, Serialization, 3-D engraving, Cutting, Plaques, Puzzles, Toys, Nameplates, Gasket Cutting, Rubber Stamps, Souvenirs, Sporting Goods, and Personalized Desk Accessories. Materials you can engrave on include Acrylic, Anodized Aluminum, Bamboo, Carbide, Ceramic Substrates, Cloth, Coated Metal, Composites, Cork, Corian, Crystal, Delrin, Fabric, Fiberglass, Foam, Glass, Kevlar, Laminated Plastic, Leather, Marble, Masonite, Matte Board, Melamine, Mylar, Nylon, Onyx, Paper, Painted Metal / Brass, Plastic, Polycarbonate, Polyester, Pressboard, Rubber, Slate, Stone, Styrene, Tile, Veneer, Vinyl, and Wood.
- Engraver Type:
- Raster and Vector
- System Input Power I:
- 120 VAC
- Laser Rated Power (watts):
- 30
- Laser Actual Power (watts):
- 30
- Laser Cooling:
- Air
- Engraving field size:
- 25" x 18" (635mm x 457mm)
- Engraving Software:
- PhotGrave, Laser Setup CD
- Item Number:
- 5708
