Lumonics JK 701
Inquire- Manufactured by:
- Lumonics
- Model number:
- JK 701
- Year manufactured:
- 1989
- Condition:
-
Good condition
- Asking price:
- $93,000
- Included extras:
- Manual
Warranty
Demonstratable
Training
Installation - Equipment location:
- Ohio
- Additional information:

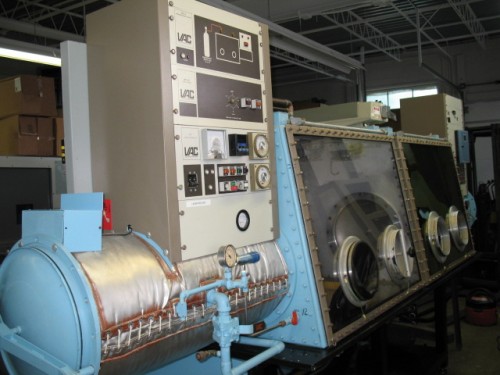

- Lumonics glovebox YAG laser welding system / Complete with Lumonics model JK 701 400 watt laser system, and VAC (Vacuum Atmospheres Corp.) inert atmosphere glovebox. The glovebox is equipped with moisture/oxygen analyzers and soot removal system. The following is a partial list of the system's configuration: -Unidex 16 controller mod. UDX16 -VAC Control Rack -RGF-1 Regeneration Flow -Pedatrol Pressure Control -Dri-Train MO40-1 Inert Gas Purifier -Has blower in bottom and vacuum pump -JK 701 Feb. '89 -Load Side 3' chamber -PRS-2 Pressure Relief System -QP-30 Quick Purge -OC-1 Oven Control -Rear Load Chamber 2' -OC-1 Oven Controller -Unload Chamber 3' -AM-2031 Moisture Analyzer -AO-316-c Oxygen Analyzer -Auto VAC AV-2 -Spencer Turbine Company Catalog # GH-1001-1/2 H MOD 3500 RPM, 100 CFM, 2 HP System was running about two years ago. System has one newer Edwards 8 vacuum pump and is complete with all three pumps. The Aerotech stages appear to be the biggest that are able to fit in the box. System is equipped with X, Y, and Z stages. X and Y stages are Aerotech model RB200. We also have some of the laser specifications in .pdf format. Many more pictures available upon request.....
- Max Average Power:
- 400 Watts
- Max Joules per Pulse (joules):
- .1 - 55J
- Pulse Width Range (msec):
- .5 - 20ms
- Pulse Rate Range (Hz):
- .2 - 500Hz
- Pulse Shaping:
- no
- Beam Delivery:
- Hard Optics
- System XYZ Travel (inches or ):
- 8 inch XY travel
- System Controller & Software:
- Unidex 16 - UDX16
- Cooling:
- Water
- System Input Power II:
- 440-480 VAC 3 phase
- Item Number:
- 5647
