Lumonics JK701
Inquire- Manufactured by:
- Lumonics
- Model number:
- JK701
- Year manufactured:
- 1989
- Condition:
-
Visibly good condition
- Asking price:
- $145,000
- Included extras:
- Manual
Warranty
Demonstratable
Training
Installation - Equipment location:
- Ohio
- Additional information:

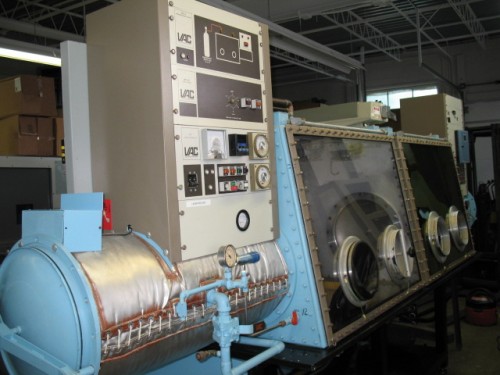

- Glovebox welding system: Vacuum Atmospheres Corp glovebox with Lumonics model JK 701 400 watt laser system, and VAC () inert atmosphere glovebox. The glovebox is equipped with moisture/oxygen analyzers and soot removal system. The following is a partial list of the system's configuration: -Unidex 16 controller mod. UDX16 -VAC Control Rack -RGF-1 Regeneration Flow -Pedatrol Pressure Control -Dri-Train MO40-1 Inert Gas Purifier -Has blower in bottom and vacuum pump -JK 701 Feb. '89 -Load Side 3' chamber -PRS-2 Pressure Relief System -QP-30 Quick Purge -OC-1 Oven Control -Rear Load Chamber 2' -OC-1 Oven Controller -Unload Chamber 3' -AM-2031 Moisture Analyzer -AO-316-c Oxygen Analyzer -Auto VAC AV-2 -Spencer Turbine Company Catalog # GH-1001-1/2 H MOD 3500 RPM, 100 CFM, 2 HP System was running about two years ago. System has one newer Edwards 8 vacuum pump and is complete with all three pumps. The Aerotech stages appear to be the biggest that are able to fit in the box. System is equipped with X, Y, and Z stages. X and Y stages are Aerotech model RB200. Also available are laser specifications in .pdf format. Many more pictures available upon request.
- Max Joules per Pulse (joules):
- 55J
- Max Peak Power:
- 400W
- Pulse Width Range (msec):
- 0.5-20ms
- Pulse Rate Range (Hz):
- 0.2-500Hz
- Pulse Shaping:
- yes
- Beam Delivery:
- Hard Optics
- System XYZ Travel (inches or ):
- 200 mm
- System Controller & Software:
- Unidex 16 model UDX16
- Cooling:
- Water
- System Input Power II:
- 440-480 VAC 3 phase
- Item Number:
- 5383
