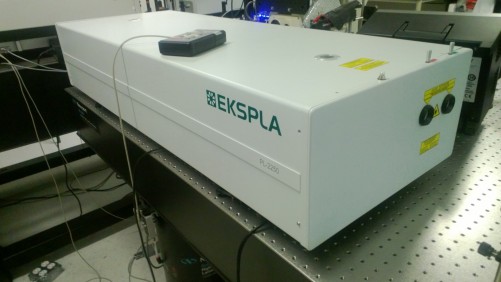

EKSPLA PL2250/PG503
Inquire- Manufactured by:
- EKSPLA
- Model number:
- PL2250/PG503
- Year manufactured:
- 2011
- Condition:
-
Very good condition
- Asking price:
- $95,000
- Price when new:
- $120,000
- Hours of Use or Pulse Count:
- <50 hours
- Included extras:
- Manual
Warranty
Demonstratable
Training
Installation - Parts and accessories:
- Picosecond Tunable Laser System with dual beam output 700-900 nm // >0.1 mJ per pulse // two outputs for 532 nm and NIR, Gaussian beams // software for the USB computer control // remote control pad // multiple triggering in/out options
- Equipment location:
- Texas
- Additional information:
- NOTE: DETAIL SPECIFICATIONS SHEET AVAILABLE UPON REQUEST // Picosecond Tunable Laser System with dual beam output // Mode locked pump laser with second-harmonic generation // OPG/OPA optimized for 700 to 900 nm tuning range // Diode-pumped laser with low maintenance cost, no elements to replace // Factory service in the US available // Specifications: Pulse energy: 532 mJ output // 0 to 1.0 // NIR output (700 to 900nm) // mJ >0.1 // Pulse repetition rate = 0 o 50 Hz and (single shot available) // Beam diameter = 2 mm // Beam divergence = 1.5 mr // Spatial beam quality = 85% fits to Gaussian in near field // Triggering: Internal, external // Synch out (5 options) // Cooling: Air (no separate cooling unit) // Size = 445mm x 260mm x 1020mm
- Wavelength(s) (nm):
- @532 (If applicable)
- Energy per Pulse II (mJ):
- 1.0 mJ (> 0.1 mJ in NIR)
- Maximum Pulse rate (Hz):
- 0 - 50 Hz
- Pulse Width I (nsec):
- 70 picoseconds
- Cooling:
- Air only
- Item Number:
- 6246
