Manual
Warranty
Demonstratable
Training
Installation
Parts and accessories:
Includes:
Grundfos Chiller
Air Assist
Honeycomb Cutting Table
Vytek FX Laser Manual and Revision 1.0 Manual
Head Alignment for carriage
Alignment target for beam bender
Software:
LaserWorx vector software 2002
LaserWorx User Guide
LaserWork CD-ROM or by import from other design programs.
Motion Control Software
FX Laser Quick Start Guide
Repairs:
Laser Recharge, Synrad / Product Code: 10-5051-07 / $4,500.00
Laser and RF Power Supply (RA-02699) Feb 2014
Features:
Two 6" exhaust ports located under the frame
Exhaust blower recommended by manufacturer for engraving and required for vector cutting
Optional 3HP exhaust blower available from Vytek
Equipment location:
New York City
Additional information:

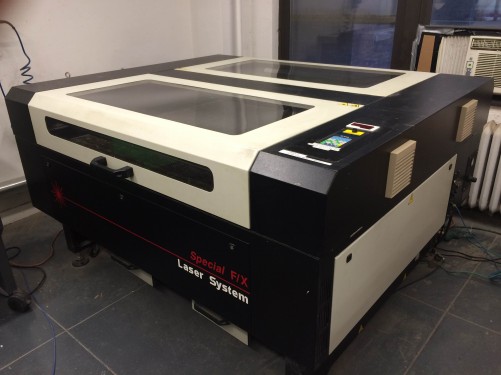

Vytek T100 Laser 100 Watt FX B5151 model is a Class 1 Laser System using CO2, 10.6 µm wavelength laser head.
It is a fully enclosed, marking, rasterizing and cutting solution.
Vytek Model: FX B5151 / 100 Watt
Manufactured: January 2008 / Designed, Manufactured & Supported in the U.S.A
Size (W x L x H): 75" x 65" x 43" * Note: With top door open, requires 70 inches of height clearance
Bed Working Area (W x L) : 51" x 51"
Weight: 1,000 lbs
Capabilities:
Cutting, Rastering, Engraving, Marking
Materials:
Vytek lasers are best suited for Plastics, Acrylics, and Wood Cutting.
Can also work with Paper media, Vinyls, Films, and Textiles
With a CO2 laser glass and stone can also be marked.
Applications:
Tooling, Automotive, Semiconductor, Memorial, Signage, Architectural Modeling, Educational, Medical,
Packaging, Job Shops, Personalization
Includes:
Grundfos Chiller
Air Assist
Honeycomb Cutting Table
Vytek FX Laser Manual
FX Laser Quick Start Guide Revision 1.0
Head Alignment for carriage
Alignment target for beam bender
Features:
Two 6" exhaust ports located under the frame
Exhaust blower recommended by manufacturer for engraving and required for vector cutting
Optional 3HP exhaust blower available from Vytek
Software:
LaserWorx vector software 2002
LaserWorx User Guide
LaserWork CD-ROM or by import from other design programs.
Motion Control Software
Minimum Power Requirements:
Computer and Data: Ethernet Connection
Windows based computer w/ a Network Interface Card
OS: Windows 95, 98, NT, 2000 or Windows XP
32MB of RAM
100 MB hard disk space on hard drive
Processor: Pentium 4 (AMD equivalent) or better
Machine:
Machine should be connected to own dedicated branch circuit protected by circuit breaker
Controls and Laser :
Synrad Laser Head 100 Watts or Less requires 30A, 1PH, 200-230V, service protected by a 30A circuit breaker.
Chiller:
Requires 10A, 1PH, at 200-230V service.
Air Assist Pump and Water Trap:
Requires 5A at 115V, plugs into standard wall receptacle
Repairs:
LASER RECHARGED BY Synrad / Product Code: 10-5051-07 / $4,500.00
Laser and RF Power Supply (RA-02699) Feb 2014
* Local pick up unless buyer is coordinating moving and shipping
Engraver Type:
Raster and Vector
System Input Power I:
30A, 1PH, 200-230V service protected by a 30A circuit breaker via dedicated branch circuit
Laser Manufacturer:
Synrad
Laser Model Number:
T100
Laser Rated Power (watts):
100 watts
Laser Actual Power (watts):
Estimated 100 watts // Laser recharged by Synrad 2014
