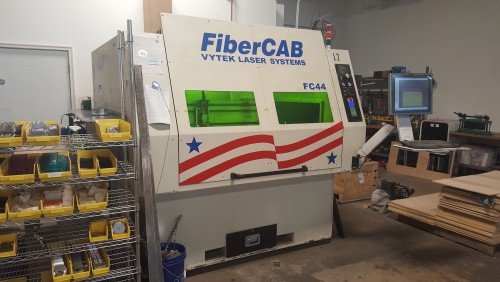

Vytek FC44
Inquire- Manufactured by:
- Vytek
- Model number:
- FC44
- Year manufactured:
- 2015
- Condition:
- Very good condition
- Asking price:
- $135,000
- Price when new:
- $230,000
- Hours of Use or Pulse Count:
- ~5000
- Included extras:
- Manual
Warranty
Demonstratable
Training
Installation - Parts and accessories:
- Microsoft Windows-based LCD Control Panel with LaserWorx software
- Equipment location:
- Portland, Maine
- Additional information:
- USA Made // Fully contained Class 1 Fiber Laser System // Rated power: 150W Continuous and 1500W Peak (10% duty cycle) // Air cooled Fiber Laser // Solid state diodes (rated for 100,000 hours) // Ball screw drive capable of 0.001" positional accuracy // 48" x 48" Cutting Bed Size // Microsoft Windows-based LCD Control Panel // Machine keypad motion controls // Integrated slider table with spoil slat supports // Scrap and drop clean out drawer // 2 Stage automatic gas assist // Backed by full service and support team // This system represents the latest in laser cutting technology // It is a Fiber Laser cutting system, using air-cooled solid state diodes (rated at 100,000 hours) to generate a laser beam that is transferred down a fiber optic cable to the cutting head. // This specific unit is rather unique in that it is a single-mode laser, utilizing a single 25 micron core fiber, which means it has a very small and precise spot size of 50 microns (0.002") when utilizing the 2x optics currently installed on the cutting head. // It is superlative in it's ability to cut small and highly accurate parts. // Vytek is an established manufacturer of high quality laser systems. All of their machines are made in USA and backed by a full service support team. // We are willing to provide 2 days of training to any buyer anywhere in the USA by sending an operator directly to your location! (Travel costs not included)
- System Hours of Operation (hours):
- 5000
- Laser Manufacturer:
- IPG
- Laser Model Number:
- YLM1501500QCWACY12
- Laser Date of Manufacture:
- 03/2014
- Laser Wavelength:
- 1070NM
- Laser Output Characteristics:
- CW & Pulsed
- Laser Beam Mode (Quality):
- Multimode
- Laser Hours of Operation (hours):
- 5000
- Laser Rated Power (watts):
- 150W Continuous, 1500W Peak
- Laser Actual Power (watts):
- 200w/3000w AVE/PEAK
- Laser Cooling:
- Air cooled
- System XYZ Travel (inches or ):
- X= 51 in. Y=51 in. Z=4 in.
- System Controller & Software:
- CNC Controller (Extratech)
- System Input Power I:
- 220 VAC single phase
- Item Number:
- 6961
