Laser Integration 20 Watt Air cooled Fiber

Inquire
Manufactured by:
Laser Integration
Model number:
20 Watt Air cooled Fiber
Year manufactured:
2011
Condition:
New or Like New
Asking price:
$19,000
Price when new:
$34,400
Hours of Use or Pulse Count:
100
Included extras:
 Manual
 Warranty
 Demonstratable
 Training
 Installation
Equipment location:
Western NY State
Additional information:
Laser Integration systems are extremely reliable and exceed specifications because of our design philosophy. For example: The system has been specified to handle over 100 watts of optical power but the maximum laser output is 20 watts. The galvanometer scanners (Extreme 15) are the best that Nutfield Technologies manufactures. The Extreme 15 scan head is competitive with any high end scanner manufactured by anyone in the world. All of the systems' power supplies are over specified so we won't have power supply failures. Because of our component selection, the laser system requires minimum maintenance: The only maintenance required is to keep the output lens clean. The IPG Fiber laser has the best beam quality of any laser built today. This high beam quality provides for a tighter focused spot and more stable operation. Mean Time Between Failures (MTBF) is specified at 100,000 hours. System Specifications: ⦁ Laser: ⦁ Air cooled 20 watt Fiber Laser (pulsed ytterbium fiber) ⦁ Wavelength:1064nm ⦁ Pulse Width 100 ns ⦁ Pulse rate: 50-600KHz ⦁ M2 beam quality <1.2 ⦁ Short term beam stability: 1.5% ⦁ Long term P ave stability: 1% ⦁ Scanner ⦁ Protected Silver Mirrors, λ/10 flatness, 50 watts ⦁ Mark Speed: 4500mm/s ⦁ Position Speed: 8000mm/s ⦁ Capable of engraving 650 characters/second ⦁ Resolution: 23µm ⦁ Repeatability: 2.3µm ⦁ Electronics: ⦁ All components are over specified to assure maintenance free operation ⦁ System is assembled in a modular fashion ⦁ Low energy consumption. This laser in green in more ways than one! ⦁ No water chiller required. Water chillers are the #1 maintenance problems for laser systems. ⦁ Waverunner Software: ⦁ Waverunner Software is one of the few programs that will run on any Windows operating system. ⦁ Interface with scanner control: USB ⦁ Robust XY2-100 scanner protocol ⦁ WaveRunner's Main Screen allows users to interact easily with the graphical interface by using familiar Windows based transactions. The center area, which represents the working area, can be customized with a grid of varying dimensions. This WYSIWYG screen shows you exactly what you can expect when you execute a Job. Many Entities can be laid out, each having an individual laser & scanning control profile. ⦁ Tabs on the right side allow quick access to Entity information and setup allowing you to easily setup or modify Entities to match your Job requirements. ⦁ Toolbars along the top allow for one click access to a variety of features including placement of text, bar codes, circles, squares, lines, triangles, freehand, inputs, outputs, timers, zoom, save, cut, copy and many more. ⦁ Along the left is an Entity priority list showing the order in which Entities will be executed during a job. The order can be changed easily by simply sliding the Entity up or down the list. ⦁ Facilities Requirements ⦁ 110-220 VAC @ 20 amps.
System Hours of Operation (hours):
100
System Controller & Software:
Waverunner
System Input Power I:
110-220 VAC @ 20 amps.
Laser Manufacturer:
IPG Photonics
Scanned Engraving Area (in or mm):
4.7" square
Wavelength (nm):
λ= 1064nm
Laser Actual Power (watts):
20
Laser Cooling:
Air Cooled
Item Number:
6471

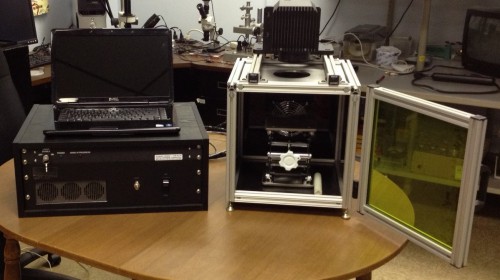

Primary photo
