Rofin-Sinar PowerLine RSY 20E

Manufactured by:
Model number:
PowerLine RSY 20E
Year manufactured:
Good condition
Asking price:
Price when new:
Hours of Use or Pulse Count:
Quantity available:
Included extras:
Parts and accessories:

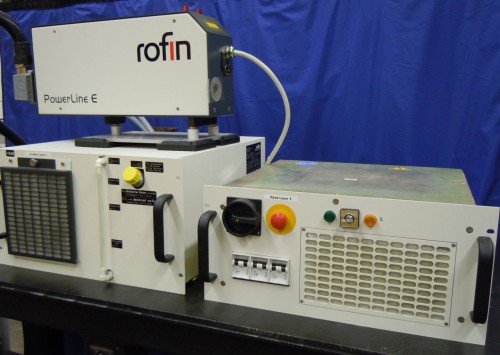

THIS SYSTEM DOES NOT INCLUDE A SCAN HEAD. (1) It includes a laser head (suitable for combination with a scan head but does not include the scan head). // (2) A power supply module. // (3) A chiller module (water-air) (4) A DELL notebook for laser control
Equipment location:
Additional information:
PERFORMANCE DATA: pulse frequency: 0 to 200 kHz // max. peak power: 150 kW // pulse duration: 5-50 ns // max. pulse energy 1.2 mJ //// The 16,000 hours are system on time (control) hours. Diode hours are not counted separately. Rofin advises that diodes should last approx. 20,000 hours //// If a scan head is added The notebook could be used to control the scanner if a USB driver electronics is used. Normally, Rofin provides a PC including a PCI card for that purpose and additional software s required.
Laser Type I:
Diode Pumped
Wavelength(s) (nm):
1064 nm
Pulse Characteristics I:
CW & Q-Switched
Laser Hours of Operation (hours):
Laser Rated Power (watts):
Laser Cooling:
water (water-air-chiller included)
System Input Power I:
220 V AC
System XYZ Travel (inches or ):
No scan head
Item Number:
