GWU Lasertechnik GmbH OPO-S 1064
Inquire
- Manufactured by:
-
GWU Lasertechnik GmbH
- Model number:
-
OPO-S 1064
- Year manufactured:
- 2002
- Condition:
-
Very good condition
- Asking price:
-
$19,000
- Price when new:
- $88,000
- Hours of Use or Pulse Count:
- 6.4M pulses @20Hz = 89h
- Included extras:
Manual
Warranty
Demonstratable
Training
Installation
- Parts and accessories:
- YAG and OPO mounted on a baseplate with
dimensions of about 620 mm x 340 mm
power supply
manual can be obtained
- Equipment location:
- San Francisco Bay Area
- Additional information:
- Optical Parametric Oscillator
KNbO3 - OPO
broad tuning range in the NIR: 1,45 µm - 4,0 µm
Pump laser requirements:
- pump wavelength: 1064nm
- polarization: horizontal
- pump energy: 100-170mJ/pulse @1064 nm
- pulse width: 5 - 12ns @ 1064nm
- repetition rate: 1 - 100 Hz
- spatial beam profile: homogenous
- divergence: < 0,5 mrad

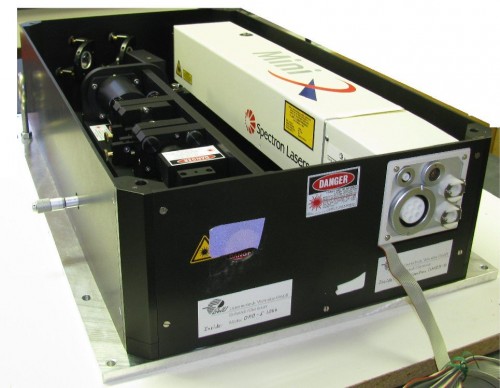

Offered System:
----------------
YAG-OPO-system
YAG and OPO mounted on a baseplate with
dimensions of about 620 mm x 340 mm
consisting of:
a)
Nd:YAG-laser,
repetition rate 20 Hz,
manufacturer: Spectron Laser model: Mini-Q,
Gaussian resonator
energy @ 1064 nm 170 mJ/puls - 220 mJ/Puls
Power supply (530 x 200 mm x 410 mm)
voltage: required 220 V
b)
OPO-S 1064 Optical Parametric Oscillator
system components:
mechanic, pump beam telescope,
resonator mirrors, KNbO3-crystal,
compensator, manual version, prepared
for use of motor
performance of the OPO:
conversion efficiency* > 8 % @ 1650 nm
( for max. pump energy 170 mJ @ 1064 nm)
tuning range
1500 nm - 2050 nm (signal wave);
2220 nm - 3600 nm (idler wave)
conversion efficiency = OPO-energy (signal + idler) / pump energy
for more information about the manufacturer see
http://www.gwu-group.com/cmslaser/
and
http://www.gwu-group.com/cmslaser/index.php?option=com_content&task=view&id=97&Itemid=186
- Output Tunable Wavelength Range (nm):
- 1500 nm - 2050 nm (signalwave); 2220 nm - 3600 nm (idlerwave)
- Pump Laser Type:
- Nd:YAG, Spectron Laser model: Mini-Q
- Pump Laser Included:
- Yes
- Pulse Width II:
- 5ns
- Energy per Pulse II (mJ):
- pump energy: 100-170mJ/pulse @1064 nm output energy: see figure (about 6-10mJ/pulse)
- Maximum Pulse rate (Hz):
- 100Hz
- Cooling:
- Internally Water Cooled
- Item Number:
- 5431
