Parts and accessories:
Available armored SMA905 Cables, 980nm eye protection, safety foot pedal, optical modules for beam dia. control.
Equipment location:
USA
Additional information:
Coherent Laser ~20w Pulsed to CW @ 980nm Thermal-FAP System (Fiber Array Package)
-- rack mountable, fiber coupled diode laser system, with dual user replaceable modules
-- independent diode laser current and temperature controls for each module
-- each module mounted on thermal electric coolers (TECs) that enable high-resolution
temperature control
-- fiber-delivered dual 10w, total 20w laser diode system
-- fiber coupled red aiming laser
-- like new, in original packaging
-- laser source life as advertised usually well in excess of 5000-7500 hours
-- only 6-20 hours used for light duty testing and characterization

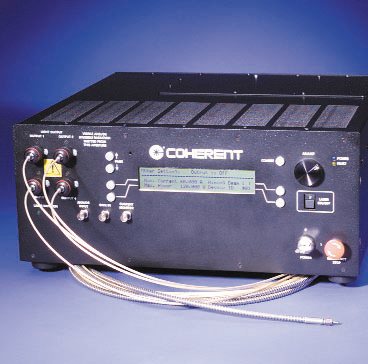

-- dual 0-10 watt outputs, tuned to 980nm (photograph shows quad output variant, only dual
output units available)
-- dual SMA905 optical connector outputs
-- RS-232 controllable for remote applications, fully programmable & adjustable
-- back plane safety DB16 interlock
, trigger
-- BNC triggering port
-- DIN style foot pedal interlock
-- Redundant laser "on" front-panel indicators
-- Power on indicator led (Blue)
-- Fault indicator led (Yellow)
-- Multiline LCD programming menu display
-- Laser on/ off switch
-- Safety master key switch
-- Emergency off push switch
ACCESSORIES:
-- Armored SMA905 optical connectors available at extra cost.
-- Foot pedals available at extra cost.
-- SMA905 compatible optical lensed reconfigurable beam pattern outputs available at extra
cost.
-- Safety Goggles, block 980 nm, available at extra cost.
Diode Lasers: Wavelength (nm):
980nm, re-tunable
Diode Lasers: Average Power or Energy per Pulse (watts/mJ):
